Industrial washing machine for big parts KM 1650

Industrial washing machine for big parts KM 1650

How it works:

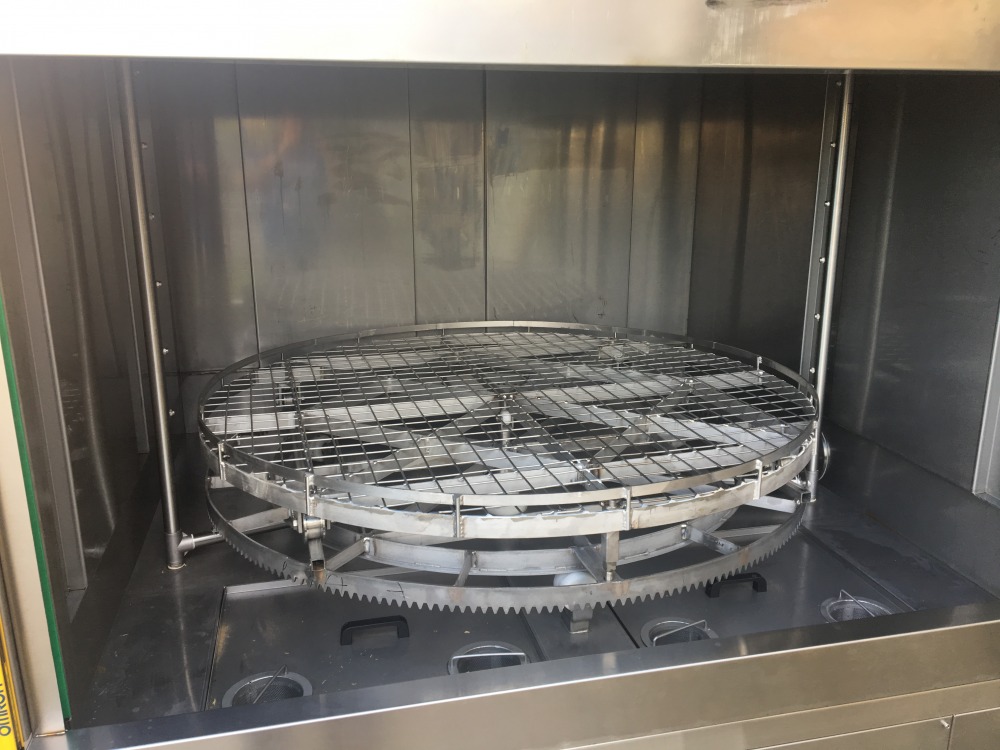

Washing is carried out in a fully insulated chamber. The entire wash cycle is performed fully automatically and thus without any manual intervention by the operator of the appliance. During the washing process, the cleaning solution penetrates all parts of the contaminated object using specially positioned nozzles. The solution is fed from the tank using a stainless steel pump. The rotating basket rotates 360° to enhance the washing effect from all sides. In this type of machine, washing and drying is carried out in the same chamber. Depending on the required process, all parameters can be controlled by PLC.

Fields of application:

  • Especially in the hydraulic industry, which requires washing according to ISO 4406
  • Automobile industry
  • Armament industry
  • Metalworking industry




Standard features:

  • Made of AISI -304 stainless steel
  • Stainless steel tank AISI-304K
  • AISI -304 stainless steel pump
  • Electric resistance heater
  • PLC control
  • Basket positioner
  • Washing temperature settings
  • Washing time settings
  • Tank level protection against overflow
  • Infrared Hand Protection (Optical Gate)
  • Two phase filtration
  • Pneumatic piston door
  • Automatic washing cycle
  • Emergency stop button

Additional accessories:

  • Oil separator
  • Automatic tank emptying
  • Digital indicator
  • Precise filtration
  • Drying module
  • Application for washing with acidic products
  • Extraction of steam
  • Automatic tank filling




VIDEO DEMO





TECHNICAL DATA OF KM 1650

Washing basket diameter

mm

1500

Max. height of the object to be washed

mm

850

Max. weight of the object to be washed

kg

1000

Tank capacity

L

350

Time of washing

min.

0-60

Max. temperature of washing

°C

85

Pump power

kW

4,4

Heating power

kW

16

Washing arms

pcs

2

Voltage

V-Hz

380-50

Total power

kW

21
